Featured Aluminum-Clad Casement & Hybrid Fenestration Systems
Direct factory configurations engineered for luxury residential estates, passive developments, and high-impact coastal environments across North America, Australia, and Southeast Asia.
Customized Modern Louver Casement Window Large Aluminum Double Insulation Glass
Wholesale Traditional Custom Aluminum Wooden Window Frames Triple Glazed Wood
Wazzor Double Glaze Motor Electric Aluminium Vertical Sliding Lift Window
Outdoor Aluminum Vertical Stacking Patio Door Double Tempered Insulated Glass
Luxury Aluminum Wooden Security Entry Door Armoured Metal Burglary Resistant

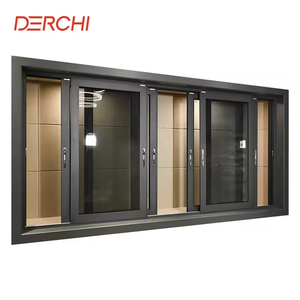

High Quality Double Tempered Glazed Custom Made Aluminum Glass Sliding Windows

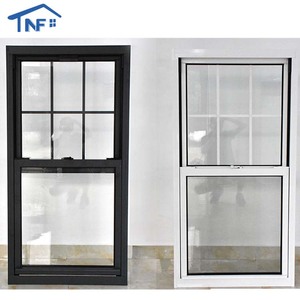

Foshan America Aluminum Tempered Glass Waterproof French Windows And Doors
Modern Design Top Hung Aluminium Window With Security Latch Low-E Double Glazed
The Anatomy of High-Performance Aluminum Clad Casement Windows
In modern high-efficiency fenestration, the hybrid composite structure known as Aluminum-Clad Timber (Holz-Alu) stands as the pinnacle of building envelope technology. By synthesizing the structural rigidity, natural insulative capacity, and biophilic interior aesthetic of solid laminated hardwoods with the exterior weatherability and zero-maintenance durability of high-tensile 6063-T6 extruded architectural aluminum, these window systems resolve the classical tension between architectural historic preservation and passive energetic conservation.
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) manufactures aluminum clad casement systems utilizing proprietary mechanical coupling clips. These specialized nylon fasteners decouple the external aluminum shell from the internal timber core. Because aluminum expands at a coefficient of thermal expansion ($\alpha \approx 23 \times 10^{-6}/\text{K}$) vastly distinct from timber ($\alpha \approx 5 \times 10^{-6}/\text{K}$ parallel to the grain), rigid fixing inevitably yields structural distortion, fastener fatigue, and seal breach. Our engineered floating clip architecture accommodates differential thermal shearing up to $\pm 3.5\text{mm}$, ensuring hermetic structural equilibrium across seasonal temperature swings spanning from $-40^\circ\text{C}$ to $+80^\circ\text{C}$.
6063-T6 Architectural Cladding
Seamlessly mitered corner joints laser-welded and cold-bonded. Finished with Class 2 AkzoNobel fluorocarbon or PPG Duranar powder coatings offering superior resistance to UV breakdown, saline degradation, and industrial acid fog.
FSC Kiln-Dried Laminated Timber
Multi-layered finger-jointed timber cores (White Oak, Siberian Larch, or Teak) kiln-dried to calibrated moisture thresholds of $10\% \pm 2\%$. Counteracted grain vectors neutralize torsional bowing, grain twist, and humidity expansion.
Continuous Triple EPDM Sealing
Automated co-extruded EPDM vulcanized continuous rubber weatherstripping creating an airtight pressure-equalization decompression chamber. Delivers Class 9A water tightness and prevents air leakage under 600 Pa cyclic loading.
Engineering Performance Benchmark: Material Structural Comparison
Procurement teams evaluating commercial and luxury residential fenestration must balance structural payload, thermal transmittance ($U_w$), lifecycle expenditure, and carbon footprint. Below is empirical laboratory test data comparing DERCHI Aluminum-Clad systems against standard alternatives:
| System Classification | Overall Thermal Transmittance (Uw) | Acoustic Damping (STC) | Structural Life Expectancy | Maintenance Requirement | Passive House Fit |
|---|---|---|---|---|---|
| DERCHI Aluminum Clad Wood Casement | 0.78 - 0.95 W/m²K | 42 - 46 dB (Triple IGU) | 50+ Years (Exterior Shielded) | Virtually Maintenance-Free | Exceeds PHI Standard |
| Thermal Break Aluminum (Polyamide Strip) | 1.30 - 1.80 W/m²K | 35 - 38 dB | 30 - 40 Years | Low (Surface cleaning) | Climate Zone Dependent |
| Solid Architectural Timber (Unclad) | 1.10 - 1.40 W/m²K | 38 - 41 dB | 15 - 25 Years (Subject to rot) | High (Re-varnish every 3-5 yrs) | Thermal OK / Weather Fragile |
| uPVC Multi-Chamber Profiles | 1.20 - 1.60 W/m²K | 32 - 36 dB | 15 - 20 Years (UV embrittlement) | Moderate (Frame yellowing) | Entry Level Only |
Future Procurement Trends & Architectural Fenestration Trajectories
Strategic forecasting for developers, facade consultants, and general contractors sourcing fenestration assets from Chinese manufacturing hubs through 2030.
Integration of Vacuum Insulated Glazing (VIG)
Standard gas-filled triple-glazed insulating units (IGUs) are rapidly reaching physical thermal limits due to pane weight and frame thickness constraints. The fenestration market is moving rapidly toward composite units marrying a tempered Low-E monolithic glass with a 0.3mm vacuum core, yielding center-of-glass Ug values of 0.4 W/m²K in profiles under 28mm thickness.
Concealed Actuators & IoT Building Systems
Luxury residential and commercial developments increasingly specify motorized casement window hardware completely concealed within the rebate groove. Controlled via BACnet, KNX, or Zigbee protocols, these automated systems coordinate with HVAC management for night-purge passive cooling, indoor air quality monitoring, and automatic storm closure.
Embodied Carbon Accounting & Circularity
Global building codes (EU EPBD, LEED v4.1, and Australia NCC) now mandate rigorous Environmental Product Declarations (EPD). Tier-1 Chinese suppliers are adopting hydroelectric-smelted low-carbon primary aluminum (less than 4.0 kg CO2/kg Al) and FSC/PEFC verified timber supply chains to meet rigorous sovereign carbon border adjustments.
Guangdong Dejiyoupin Doors & Windows Co., Ltd.
Operating under the globally recognized DERCHI brand, Guangdong Dejiyoupin Doors and Windows Co., Ltd. represents one of China's top 10 premium manufacturers in advanced fenestration engineering. Headquartered in Foshan, Guangdong—the epicenter of global architectural aluminum manufacturing—we have dedicated over 25 years to the research, development, and high-precision production of custom aluminum clad casement windows, luxury armored pivot entry systems, and architectural panoramic glazing.
AS 2047 N6 & CE Certified
Engineered and tested to pass the most stringent cyclonic wind load and cyclic water penetration standards in Australia (AS 2047 N6), North America (AAMA/WDMA), and Europe (CE EN 14351-1).
Rapid BIM/CAD Engineering
Our dedicated engineering department generates precision structural calculations, thermal finite element simulations, and full CAD/BIM shop drawings within 48 hours of initial tender review.
German CNC Five-Axis Joinery
Featuring automated Homag and Elumatec CNC milling lines that process structural timber and extruded aluminum profiles with dimensional tolerances within ±0.2mm for seamless thermal sealing.
Global Project Footprint
From landmark showcase villas in the USA and Canada to multi-unit luxury high-rises across Southeast Asia and the Middle East, our references were prominently celebrated at WORLDBEX 2025 in Manila.
Frequently Asked Questions for Sourcing Aluminum-Clad Windows
Direct technical clarifications addressing engineering tolerances, overseas logistics, certification compliance, and quality control protocol.
How does DERCHI prevent timber moisture expansion and condensation rot in tropical climates?
Our raw lumber undergoes multi-stage vacuum radio-frequency kiln drying, locking equilibrium moisture content between 8% and 12%. The exterior aluminum shield is mounted using non-conductive polymer clips that maintain a continuous 5mm ventilation cavity, allowing air convective dissipation of interstitial moisture while blocking rain ingress.
Which architectural hardware manufacturers are integrated into your casement mechanisms?
We partner with premier German fenestration hardware houses including Siegenia-Aubi, Roto Frank, and Hoppe, as well as specialized in-house stainless steel 316 multi-point concealed latches. All hardware achieves Grade 5 corrosion resistance (EN 1670) and is cycle-tested beyond 25,000 opening/closing operations without sash sagging.
Can your aluminum-clad casement windows satisfy local building code certifications (AS 2047, NFRC, CE)?
Yes. Every batch engineered for regional export is manufactured with compliant profiles, structurally glazed IGUs, and appropriate glass markings. DERCHI holds certified AS 2047 N6 test reports from accredited Australian test facilities, CE declarations under EN 14351-1, and ISO 9001 quality management verification.
What is the standard production lead time and ocean export packaging protocol?
Custom production schedules average 25 to 35 business days following final CAD shop drawing sign-off. Windows are glazed, factory calibrated, wrapped with anti-scratch PE protective film, sealed in desiccated moisture-barrier bags, and packed within heavy-duty fumigated plywood crates reinforced with internal steel dunnage to eliminate shipping strain.
Initiate Your Engineering Consultation & Tender Estimation
Collaborate directly with our senior structural fenestration engineers in Foshan. Submit your project door and window schedules, CAD elevations, or custom performance requirements to receive comprehensive shop drawings and an itemized factory-direct quote within 24 hours.
