Featured Aluminum Roll Up Counter Doors & Commercial Shutters
Explore precision-engineered counter shutters, high-security commercial roller doors, and transparent polycarbonate overhead closures sourced directly from certified Foshan facilities.

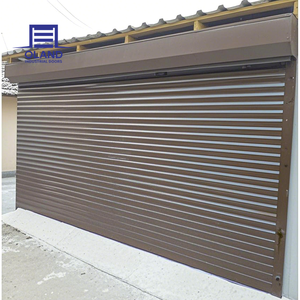

Windproof Aluminum Commercial Rolling Shutter Door
OLAND Industrial Aluminum Alloy Roller Shutter Door
TOMA European Automatic Roll Up Counter Windows & Doors
Hardened Aluminum Section Rapid Roll Up Door
Custom Interior Counter Security Roller Shutter
Electric Anti-Theft Clear PC Counter Roll-Up Door

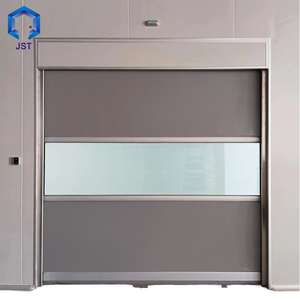

High-Speed Workshop PVC & Aluminum Hybrid Counter Door
Commercial Motorized Architectural Counter Roller Door
Engineering Integrity from Guangdong's Premier Production Hub
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) operates one of Asia's most sophisticated fenestration and architectural rolling shutter facilities in Foshan, China. We bridge European engineering tolerances with high-efficiency export delivery.
Structural Architecture of Commercial Aluminum Roll Up Counter Doors
Aluminum roll up counter doors (counter shutters) represent a specialized category of fenestration engineering, designed to secure pass-through openings, service windows, cafeteria counters, hospital dispensaries, and retail kiosks without consuming valuable floor clearance.
Alloy Metallurgy: 6063-T5
Our slats are extruded from virgin-ingot 6063-T5 aluminum alloy, providing an optimal balance of structural tensile strength (yield strength ≥ 145 MPa) and pristine surface finishing capability. Unlike cold-rolled steel shutters, extruded aluminum slats will never corrode, oxidize, or generate iron-oxide staining in damp or coastal retail microclimates.
- Slats wall thickness: 1.0mm to 2.2mm structural profiles
- Interlocking hinge knuckles prevent slat separation
- Endlocks secured via hardened rivets prevent lateral displacement
Barrel & Counterbalance Physics
Counter doors require precise manual or motorized torque equilibrium. Our structural spring barrels employ high-tensile oil-tempered helical torsion springs designed for a minimum of 20,000 to 50,000 duty cycles. Spring tension is calculated via finite element analysis matching curtain weight, deflection, and pipe axle diameter.
- Deflection restricted to < 1/400th of curtain width
- Sealed ball bearings ensure quiet, effortless rotation
- Compact roll diameter (180mm–280mm) fits tight ceilings
Acoustic, Wind & Thermal Buffering
To eliminate operational rattle, vertical extruded guide rails incorporate dual continuous poly-brush or EPDM weatherstripping. For exterior canteen counters or climate-controlled pharmaceutical dispensaries, double-walled foam-injected slats filled with non-CFC polyurethane foam deliver substantial thermal insulation and acoustic attenuation.
- Sound transmission attenuation up to Rw 22–26 dB
- Bottom bar heavy-gauge extruded profile with tubular seal
- AS 2047 N6 and CE compliance standards achieved
Future Procurement Trends & Technological Evolutions (2025–2030)
How international architectural specifications, digital supply networks, and material science innovations are transforming the procurement roadmap for global commercial projects.
Integrated BMS & Smart Building IoT
Commercial roll up counter doors are evolving beyond standalone electromechanical switches. Modern commercial facilities demand bidirectional RS-485 Modbus or dry-contact integration into centralized Building Management Systems (BMS). Next-generation counter doors now incorporate remote state telemetry, optical safety light curtains, and automatic closure linked directly to fire-alarm trip relays.
Specification Shift: Direct Factory DDP
Leading tier-1 main contractors and architectural distributors are bypassing domestic third-party brokers. By collaborating directly with premier Chinese manufacturing hubs like DERCHI, project procurement teams secure exact BIM Revit family modeling, free shop-drawing signoffs, 35–45% hardware cost reductions, and transparent door-to-jobsite delivery protocols.
Eco-Anodizing & Qualicoat Powder Finishes
Environmental standards in North America (LEED v4) and Europe (CE/EN13241) require certified low-VOC finishes. Export-grade aluminum counter doors are shifting to Class 1 Qualicoat-certified architectural powders and 20-micron hard anodizing. These surface treatments withstand extreme coastal salt fog (ASTM B117 > 1,000 hrs) and severe cleaning detergent washdowns.
How to Engineer & Specify Your Counter Door Order
Follow this verified 4-step engineering verification workflow to eliminate site measurement errors, electrical mismatches, and shipping damage during overseas procurement.
Dimensional Clearances
Verify exact daylight opening width (W) and height (H). Audit side-room clearance for guide rails (typically 60mm–90mm each side) and head-room clearance for the coiling box hood (200mm–350mm).
Operation Selection
Determine manual push-up counter balance, manual crank handle, or integrated tubular motor. For motorized configurations, define local voltage requirements: 110V/60Hz, 220V/50Hz, or 24V DC emergency backup.
Slat Profile & Finish
Select solid extruded slats for high privacy and security, perforated/punched micro-slats for 25–40% airflow ventilation, or transparent polycarbonate profiles for retail kiosk visibility. Pick custom RAL powder coating.
Export Crating Protocol
Insist on heavy-gauge fumigated multi-layer plywood cases. Ensure slats are film-laminated, edge-padded, and barrels strapped securely to avoid transit abrasions over ocean routes.
Frequently Asked Questions by Commercial Specifiers & Importers
Objective, engineering-backed answers addressing the most common commercial roll up door procurement challenges.
What is the maximum span width for an aluminum roll up counter shutter?
While standard counter doors accommodate openings between 1,000mm and 4,500mm wide, our engineered double-walled reinforced 6063-T5 aluminum profiles with heavy-duty structural endlocks can safely span widths up to 6,500mm without exceeding allowable center-curtain deflection thresholds under standard interior operational pressures.
How do aluminum counter shutters compare against stainless steel options?
Aluminum offers approximately 60% weight reduction compared to stainless steel, significantly decreasing torsion spring stress, lowering motor torque requirements, and allowing faster manual operation. Additionally, aluminum facilitates high-precision architectural powder coating in any RAL palette, whereas stainless steel is heavier, costlier, and primarily restricted to brushed or mirrored finishes.
Can motorized counter doors be operated manually during total power outages?
Yes. All DERCHI motorized counter door systems are equipped with either an integrated mechanical manual override hand crank (accessible at counter level) or an emergency battery backup uninterrupted power supply (UPS) that automatically enables 10–15 complete open/close cycles when mains electricity is disconnected.
What certifications and compliance documents accompany export orders?
DERCHI exports roll up doors and architectural fenestration systems certified under CE (EN 13241-1), ISO 9001 Quality Management, and AS 2047 N6 wind resistance standards. Each export shipment includes material mill test certificates (6063-T5 alloy composition), electrical motor CE conformity declarations, and serialized factory quality control inspection logs.
What is the standard production and shipping lead time from Foshan?
Standard custom-dimension orders (1 to 20 units) require 12 to 18 business days for extrusion cutting, CNC milling, custom powder coating, motor calibration, and test rolling. High-volume commercial contracts (100+ units) follow planned phased dispatches. Direct sea freight from nearby Guangzhou or Shenzhen ports ranges from 12–28 days depending on the destination port.
Initiate Your Direct Factory Counter Door Project
Connect immediately with Guangdong Dejiyoupin's engineering team in Foshan. Send your opening schedules, CAD elevations, or performance tender specifications for a comprehensive technical proposal, precise CAD drawings, and volume FOB/CIF export pricing within 24 hours.
