High-Performance Aluminum Net Door Systems
Engineered with heavy-duty 6063-T5/T6 structural aluminum and marine-grade 304/316 stainless steel high-tensile security mesh ("King Kong Mesh"). Certified for weather-tightness, insect exclusion, and dynamic forced-entry resistance.
Door Doors Interior for Houses Entrance Front Sliding Composite Net Entry
Rogenilan Villa House Heavy Duty Panoramic Aluminum Sliding Door with Mosquito Net
Custom Thermal Break Swing Casement Door System with Integrated Mosquito Net
Turtech Automatic Architectural Pivot Entrance Door with Intelligent Controller
Soundproof Double Glazed Aluminum Alloy Casement Door with Wire Mesh Screen
AS2047 Cyclone-Rated Precision Aluminum Screen & Sash Glazed System
Heavy Duty Aluminum Security Door Villa Entrance with Multi Point Lock System

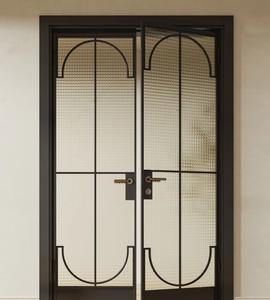

American Security Modern Architectural Aluminum Swing Screen Door
Anatomy of an Export-Grade Aluminum Net Door
Global wholesale sourcing of mesh barrier doors requires deep technical evaluation beyond surface aesthetics. Substandard suppliers often cut costs by utilizing recycled secondary aluminum billets and low-nickel 201-grade wire netting that corrodes within months in high-humidity and marine-coastal environments.
Primary 6063-T5 / T6 Extrusion
Our door stiles, rails, and structural subframes are extruded exclusively from virgin A00 aluminum ingots. Utilizing 6063 alloy heat-treated to T5 or T6 temper yields a tensile strength exceeding 215 MPa and a Webster hardness of ≥12 HW.
- Wall thickness: 1.6mm to 3.0mm structural thresholds
- Yield strength: ≥ 160 MPa against hurricane deflection
- Corner jointing: 45° CNC hydraulic crimp with cast aluminum corner cleats
King Kong Mesh (SS304/SS316)
The screen core utilizes high-tensile, plain-weave 0.8mm to 0.9mm stainless steel wire with an aperture opening of 1.5mm × 1.5mm (11 mesh / 12 mesh), perfectly balancing ultra-high ventilation airflow with impenetrable insect and forced-entry defense.
- Tensile wire strength: >900 MPa knife-shear proof
- Corrosion resistance: ASTM B117 salt spray > 3,000 hours
- Mechanical retention: Patented pressure-plate clamp without screws
Architectural Surface Finishes
Coastal and tropical microclimates demand robust architectural coatings. We apply industrial Qualicoat Class 2 certified powder coatings (AkzoNobel Interpon / PPG) and fluoropolymer PVDF formulations resisting UV discoloration, chalking, and acid rain.
- Coating thickness: 60–80 microns electrostatic application
- Cross-hatch adhesion: Class 0 (ISO 2409 compliant)
- Custom Finishes: Anodized 25μm, matte black, bespoke woodgrain
| Performance Parameter | Standard Market Screen Door | DERCHI Architectural Commercial Grade | DERCHI Cyclone & Anti-Theft Grade (AS2047/AS5039) |
|---|---|---|---|
| Aluminum Alloy Quality | Recycled scrap aluminum (variable purity) | 6063-T5 Virgin Ingot Extrusion (1.6mm - 2.0mm) | Heavy-Duty 6063-T6 Structural Profile (2.0mm - 3.0mm) |
| Screen Infill Material | Fiberglass / 201 Stainless Mesh (0.4mm) | High-Tensile 304 Stainless Steel (0.8mm) | Marine-Grade 316 Stainless Wire Net (0.9mm / 950 MPa) |
| Knife Shear Resistance | Fails under light utility blade puncture | Meets AS 5041 Knife Shear Test (Pass 3 continuous passes) | Exceeds AS 5041 Level 3; Anti-crowbar & chisel resistant |
| Dynamic Impact Test | Fails (< 50 Joules rupture) | Withstands 5 consecutive 100 Joule sandbag impacts | Withstands repeat heavy shock impacts (> 200 Joules) |
| Locking Mechanism | Single-point latch or plastic cam | 3-Point Mortise Hook Lock System | 5-Point Vault-Style Multi-Lock with Anti-Drill Core |
| Weather-Stripping & Seals | Standard PVC foam (shrinks in UV) | EPDM Dual-Durometer Compression Gaskets | Santoprene Co-extruded Thermal Seals + Brush Pile |
| Wind-Load Capability | Under 1200 Pa (Serviceability limit) | Serviceability 2500 Pa / Ultimate 3500 Pa | AS 2047 N6 Rating (Ultimate Wind Pressure > 4500 Pa) |
Future Procurement Trends in Aluminum Net Doors
Procurement directors, commercial general contractors, and overseas door distributors must adapt to evolving consumer expectations, stringent climate codes, and architectural preferences. The global market for high-security aluminum mesh fenestration is shifting through four pivotal industry trajectories.
1. Thermal Break Modernization
Strict energy efficiency codes (ASHRAE 90.1, Title 24, BCA Australia) are compelling manufacturers to marry security screens directly into polyamide thermal break frames. Dual-cavity designs allow uninterrupted thermal envelopes while granting natural ventilation when glass panels are retracted.
2. Motorized & Smart IoT Integration
Architectural high-end villas and commercial developments increasingly demand smart home connectivity. High-torque brushless DC motors now integrate concealed roller net screens that automatically retract based on environmental sensors, Tuya/Zigbee controls, and automated biometric access control.
3. Extreme Climate & Cyclone Engineering
Global coastal markets (Florida, the Caribbean, Southeast Asia, Northern Australia) face frequent extreme monsoons and category 4/5 typhoons. Screen door specifications have migrated from simple insect barriers to full impact debris screens compliant with ASTM E1886 and AS 2047 cyclic wind-pressure ratings.
4. Knock-Down (KD) Container Logistics
With volatile maritime shipping rates, global procurement teams are transitioning from fully assembled bulky frames to precision-milled Knock-Down (KD) system kits. Patented corner-cleat joinery allows regional fabricators to assemble doors on-site in under 15 minutes, tripling container load yield.
Need custom extrusion dies, project shop drawings, or container pricing for your upcoming development?
Get a QuoteEvolutionary Generations of Aluminum Net Doors
Understanding the multi-generational progress of metal mesh fenestration enables wholesale procurement directors to identify obsolescence risks and invest in high-yield, long-lifecycle product portfolios.
Traditional Roll-Formed Screen
Lightweight 0.6mm rolled aluminum framing with nylon/PVC or fiberglass flexible mesh retained via a rubber spline bead. Primarily functional for basic fly exclusion.
- Low structural rigidity; prone to warping
- Zero security resistance; cut with household scissors
- Splines degrade and sag within 24–36 months
- Limited span capabilities (doors flex under draft)
Standard Diamond Grille & Net
Combination of an extruded 1.2mm aluminum frame overlaid with a decorative cast diamond grille, backed by stainless steel or aluminum fine mesh.
- Moderate physical deterrent against intruder entry
- Visual obstruction caused by thick diamond pattern
- Riveted mechanical joints prone to galvanic corrosion
- Difficult to clean and wash accumulations
Modern Structural King Kong Mesh System
Current gold standard: Heavy architectural 6063-T5/T6 extrusion with seamless 45° corner joints and marine SS316 0.9mm high-tensile wire matrix clamped mechanically.
- Clear unobstructed 180° outward visibility
- Knife-shear, crowbar, bullet-resistant (NIJ Level 1)
- Interpon architectural powder coating with 15-yr warranty
- Integrated seamless flush multi-point mortise locking
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI)
Headquartered in Building 19, Shenke Chuangzhi Park, Shishan Town, Nanhai District, Foshan—China's aluminum capital—DERCHI is recognized among the Top 10 premium door and window manufacturing enterprises in China. With over 25 years of relentless engineering experience, we operate an expansive 180,000 square-meter production facility employing over 600 specialized engineers, technicians, and precision operators.
Our comprehensive export product mix includes premium architectural aluminum entry doors, anti-theft King Kong net doors, heavy-duty panoramic sliding doors, massive structural pivot systems, and soundproof casement barriers. Having showcased at major international expos including WORLDBEX 2025 in the Philippines, our building envelope systems are trusted by tier-1 developers and contractors across Southeast Asia, North America, Australia, and the Middle East.
Factory Quality Verification Protocols for Wholesale Exporters
How overseas buyers protect their investments when sourcing high-volume aluminum screen doors from China. Every DERCHI manufacturing batch passes through an uncompromising six-stage Quality Assurance (QA) inspection matrix before container sealing.
1. Metallurgical & Spectrometer Testing
Every extrusion batch undergoes Optical Emission Spectrometry to verify precise Si, Mg, and Fe chemical composition compliance with the 6063 architectural alloy standard. Webster hardness testing verifies consistent T5/T6 tensile ratings across all profiles.
2. Wire Mesh Knife-Shear & Impact Rig
Stainless steel net samples undergo laboratory knife-shear tests using heavy tungsten steel blades under 350N downward pressure, followed by pneumatic impact pendulums replicating forced entry attempts as specified in Australian Security Door Standard AS 5041.
3. 100% Pre-Assembly & Alignment Check
Prior to export crating, representative doors undergo full frame-in-sash trial assembly on computerized squaring tables. Corner miters are measured for flushness within a tolerance of ±0.3mm, and multi-point mortise latches are cycled 50 times for flawless engagement.
Frequently Asked Questions by Global Importers & Contractors
Comprehensive engineering and commercial clarifications covering Minimum Order Quantities, maritime logistics, rust proofing, and project shop-drawing approvals.
Q1 What is the standard MOQ for wholesale aluminum net doors?
For standard architectural profiles and catalog finishes (Matte Black, Traffic White, Architectural Bronze), our baseline Minimum Order Quantity (MOQ) is 50 square meters or approximately 15–20 completed door sets. For fully custom extrusion dies or unique RAL color powder coating runs, the MOQ is 300 square meters or one 20-foot GP container.
Q2 How does DERCHI prevent galvanic corrosion between the aluminum frame and stainless steel mesh?
When dissimilar metals (aluminum and stainless steel) touch in the presence of an electrolyte (humidity/salt air), galvanic corrosion can degrade the aluminum. DERCHI utilizes a proprietary non-conductive PVC/EPDM isolation barrier and powder-coated mesh edges, completely isolating the stainless wire from direct contact with the aluminum extrusion channel.
Q3 Can your aluminum net door systems pass the Australian AS 2047 / AS 5039 standards?
Yes. DERCHI fenestration products have been independently tested and achieved AS 2047 N6 rating—the highest cyclone and wind load classification covering ultimate wind resistance, water penetration, and air infiltration. Our security mesh systems conform to AS 5039 (materials) and AS 5041 (mechanical dynamic impact and knife-shear testing).
Q4 What are the lead times for custom project orders and containerized shipments?
Standard engineering shop drawings (CAD/BIM) are delivered within 48 hours of receipt of your architectural schedules. Following drawing sign-off and deposit confirmation, manufacturing lead time averages 25 to 30 calendar days. Ocean transit from Foshan / Guangzhou / Shenzhen ports takes 10–14 days to Southeast Asia, 20–25 days to the US West Coast, and 28–35 days to Europe.
Q5 How are the doors packaged to prevent damage during multi-modal sea freight?
All finished assemblies are wrapped in 0.2mm protective PE scratch-film, corners cushioned with molded EVA edge protectors, wrapped in multi-layer pearl foam, and packed into fumigated solid plywood crates or steel-reinforced A-frames. Craters are marked with opening tags and floor schedules for rapid on-site sorting.
Q6 Can you supply Knocked-Down (KD) kits for regional assembly?
Yes. For high-volume regional distributors and local window fabricators with internal assembly lines, we supply completely pre-milled, precision CNC-cut Knock-Down (KD) systems. Profiles arrive pre-notched with corner hardware, pre-cut rubber gaskets, and roll-packed mesh, reducing shipping volume by over 60%.
Q7 What hardware systems and locks are integrated into your security net doors?
We supply both premier German-engineered hardware (Siegenia, Roto, Hoppe) and our certified proprietary heavy-duty multi-point locksets. Locks feature stainless steel 304 throw bolts, anti-drill brass cylinders, and can be integrated with smart biometric fingerprint, RFID, and digital keypad locks.
Q8 What warranties are provided on finishes and structural components?
DERCHI offers a 10-year structural warranty on all extruded 6063-T5/T6 aluminum door profiles, a 5 to 15-year warranty on architectural powder coating (depending on Qualicoat class and AkzoNobel Interpon specification), and a 10-year anti-perforation warranty on marine-grade SS316 King Kong mesh screens.
