Architectural-Grade Sliding Folding Door Series
Explore our top 8 rigorously engineered bifold and accordion systems manufactured from structural 6063-T6 aluminum alloys, integrated with multidirectional carriage hardware, high-performance thermal barriers, and impact glazing assemblies.
Thermal Break Double Tempered Glass Exterior Sliding Bifold Entry Door
System Specifications

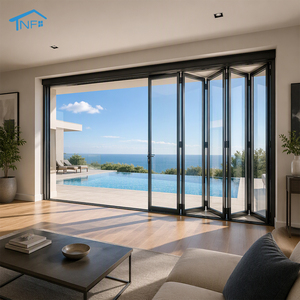

NF Double Glazed Exterior Accordion Patio Door Wholesale Entry System
System Specifications
12 Feet Heavy-Duty Air Tightness Tempered Glass Accordion Folding Doors
System Specifications
DERCHI Slim-Profile Thermal Break Sliding Folding Doors for Modern Architecture
System Specifications

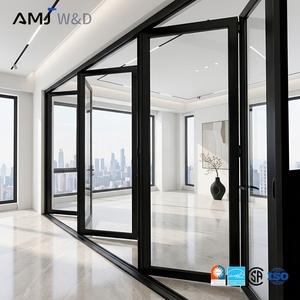

Factory Exterior Thermal Break Bi-Fold Accordion High-Traffic Patio Doors
System Specifications

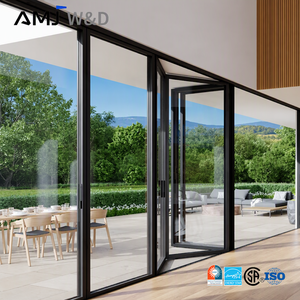

Modern Lockable Waterproof Bifold Double Glass Sliding Accordion Doors
System Specifications
Hurricane-Proof Luxury Tempered Double Glazed Exterior Folding Doors
System Specifications
Precision Engineered Aluminum Tempered Glass Bifold Sliding Door System
System SpecificationsComprehensive Engineering Matrix & Performance Benchmarks
When specifying aluminum sliding folding door assemblies for institutional or high-end residential building envelopes, procurement managers must evaluate critical laboratory performance criteria.
| Performance Parameter | Architectural Standard | DERCHI Test Verification | Industry Standard Average | Compliance Status |
|---|---|---|---|---|
| Wind Pressure Resistance | AS 2047 / ASTM E330 | N6 Class (> 4,500 Pa) | 2,000 - 2,500 Pa | Exceeds Benchmark |
| Water Penetration Resistance | BS EN 12208 / AAMA 501.1 | 450 Pa - 700 Pa (Sub-Sill) | 150 - 300 Pa | Certified Severe Weather |
| Thermal Transmittance (U-Value) | ISO 10077-1 / NFRC 100 | 1.3 - 1.8 W/m²·K (Warm Edge) | 2.8 - 3.4 W/m²·K | Passivhaus Compatible |
| Acoustic Attenuation (STC / Rw) | ISO 717-1 / ASTM E413 | Rw 38 dB - 42 dB (Lami-Glass) | Rw 28 - 32 dB | Acoustic Shield |
| Operational Kinematic Longevity | EN 1191 Cycle Durability | 100,000 Repeated Cycles | 25,000 Cycles | Heavy Commercial Rated |
| Structural Extrusion Alloy | GB 5237 / ASTM B221 | 6063-T6 Architectural Grade (2.0-3.0mm) | 6063-T5 (1.4mm) | Structural Superiority |
Next-Generation Engineering & Architectural Trends
The worldwide demand for expansive, uninterrupted outdoor-indoor transitions has propelled aluminum sliding folding door innovation toward radical thermal, structural, and kinematic breakthroughs.
Ultra-Minimal Sightlines & Concealed Kinematics
Architects increasingly demand narrower vertical stiles without sacrificing structural deflection resistance. Leading manufacturers employ cold-drawn high-tensile 6063-T6 aluminum alloys and concealed interlocks to minimize frame sightlines to under 100mm per pair. Rollers and hinges are hidden completely within the head track and sill profile.
Multi-Cavity Polyamide Thermal Envelopes
With tightening municipal carbon mandates and ASHRAE 90.1 energy protocols, single-bar thermal breaks are being superseded by multi-cavity PA66GF25 (polyamide reinforced with 25% glass fiber) thermal barriers. Filled with low-density aerogel or polyurethane foams, modern bifold extrusions achieve system U-values below 1.4 W/m²·K.
Motorized Biophilic Automation & Smart IoT
Commercial venues, high-end hospitality venues, and penthouses are actively integrating whisper-quiet, brushless DC motorized carriages. These intelligent systems allow up to 1,200 kg multi-panel folding arrays to glide open via smartphone apps, building management protocols (BACnet, KNX), or automated rain/wind anemometer sensors.
The Evolution of Global Fenestration Sourcing (2026-2030)
International real estate developers, commercial contractors, and facade consultants are shifting procurement strategies toward consolidated direct-to-manufacturer supply chains to optimize lead times and mitigate logistics volatility.
Direct-Factory Engineering Collaboration
Importers are bypassing trading intermediaries, connecting their facade engineers directly with manufacturer CAD/BIM teams in Foshan to develop customized door extrusion dies, ensuring millimetric structural alignment with onsite concrete opening tolerance schedules.
Knocked-Down (KD) Freight Optimization
Due to ocean freight container optimization mandates, procurement teams increasingly favor modular Knocked-Down (KD) shipment of massive bifold units. Frames and double/triple glazed insulated glass units (IGUs) are packaged with precise barcode sequencing for assembly onsite.
Comprehensive Laboratory Certifications
Regional approvals demand proven laboratory credentials. Tier-1 buyers mandate verified AS 2047, CE EN 14351-1, AAMA/WDMA/CSA 101, and acoustic test reports from accredited bodies (like NATA, Intertek, or TÜV) to fast-track municipal code approval.
Life-Cycle Costing & Marine-Grade Finishes
For coastal resorts across Southeast Asia, North America, and the Middle East, procurement mandates specify Qualicoat Class 2 or AAMA 2605 70% PVDF fluoropolymer finishes, resisting over 3,000 hours of continuous acetic salt spray testing without micro-pitting.
Manufacturing Authority & Production Scale
Operating under the renowned DERCHI brand, Guangdong Dejiyoupin Doors and Windows Co., Ltd. ranks as one of the Top 10 premium architectural manufacturers in China. For more than 25 years, our manufacturing complex in Foshan, Guangdong has engineered and fabricated custom aluminum folding doors, entry doors, commercial pivot systems, and high-performance exterior fenestration for prestigious projects across the globe.
From private oceanfront villas to 500-unit condominium developments in the Philippines, Australia, Canada, and the United States, our engineering methodology integrates structural finite element analysis with robotic fabrication accuracy. Our presence at WORLDBEX 2025 in the Philippines solidified our status as the partner of choice for builders demanding zero defect tolerance.
Frequently Asked Questions for B2B Procurement
Get authoritative, engineering-backed answers to the technical, structural, and logistical questions commonly encountered when importing custom aluminum sliding folding doors.
What is the structural difference between top-hung and bottom-rolling bifold systems?
Top-hung systems suspend the door panel weight from the overhead structural lintel, resulting in a feather-light gliding motion and allowing completely recessed flush bottom tracks with zero trip hazard. However, they require substantial structural overhead support (steel I-beam or reinforced concrete lintel) engineered to support the collective weight of multiple double/triple-glazed panels. Conversely, bottom-rolling systems transfer the dead load entirely to the finished floor foundation, requiring less structural overhead lintel strength, making them ideal for retrofits and large openings with lower structural overhead capacity.
How do DERCHI folding doors achieve AS 2047 N6 cyclone and wind rating?
Our AS 2047 N6 certified systems feature thick-walled 6063-T6 aluminum extrusions (2.0mm to 3.0mm primary wall thickness) coupled with heavy-duty structural mullion stiffeners. We utilize continuous EPDM vulcanized co-extruded dual-durometer compression gaskets along panel perimeters, reinforced stainless steel quad-roller carriages, and internal multi-point shootbolts that engage deeply into both top head track and bottom sill channels. This configuration withstands ultimate design pressures exceeding 4,500 Pa without structural displacement or frame failure.
What glass configurations are recommended for acoustic isolation and thermal reduction?
For balanced thermal and acoustic performance, we engineer double or triple glazed units combining Low-E coated tempered glass, argon gas chambers with warm-edge composite spacers, and an acoustic PVB or SentryGlas (SG) laminated glass pane. For instance, a 6mm Low-E Tempered + 12A (Argon) + 6mm+1.52PVB+6mm Laminated setup delivers a solar heat gain coefficient (SHGC) under 0.28, a thermal U-value of approximately 1.4 W/m²·K, and an acoustic sound transmission class rating exceeding Rw 40 dB, shielding against street traffic or severe storms.
How does DERCHI package large folding door assemblies for international sea freight?
To prevent transit deformation, moisture ingression, or surface micro-abrasion across ocean voyages, every profile is wrapped in multi-layer PE electrostatic protective film, corners are shielded with high-density EVA shock-absorbing protectors, and glass panels/frames are packed in fumigated heat-treated solid timber crates or heavy-duty steel-caged pallets. For oversized configurations, doors are shipped knocked-down (KD) with pre-machined mortises, pre-drilled hardware slots, and color-coded labels mapped to clear installation diagrams.
Can you customize track sills for zero-barrier interior/exterior architectural transitions?
Yes. We manufacture ultra-low profile flush track sills with hidden sub-surface continuous weeping slots and external linear drainage integrations. These specialized systems sit completely level with finished interior hardwood and exterior paving slabs, complying with international ADA accessibility standards while effectively diverting torrential rainwater through integrated drainage chambers.
What surface finishes are available for harsh coastal marine or high-UV environments?
We offer architectural-grade 70% Kynar 500 / Hylar 5000 PVDF fluoropolymer wet coatings (compliant with AAMA 2605), high-durability Qualicoat Class 2 architectural powder coatings (AkzoNobel / Tiger Drylac), and 25-micron hard-anodized electrolytic finishes. These treatments provide exceptional resistance against ultraviolet photo-oxidation, salt-spray corrosion, and coastal sand abrasion, backed by comprehensive manufacturer warranty terms.
Connect Directly with DERCHI Facade Engineers
Whether you require CAD shop drawings, wind-load structural calculations, glass thermal analysis, or competitive direct-from-factory volume quotes for your upcoming development, our engineering team replies within 24 hours.
