Strategic Sourcing for High-Load Aluminum Lower Window Assemblies
In contemporary architectural design, lower window assemblies—incorporating bottom-hung hoppers, lower-level hung sashes, structural awning vents, and integrated basement casements—serve as critical building envelope interfaces. As commercial towers, residential multi-family complexes, and luxury villa estates face stricter climatic volatility and stringent zero-emission energy regulations, sourcing precision-engineered aluminum lower window units from vertically integrated Chinese manufacturing hubs has shifted from a cost-arbitrage tactic to an essential technological alliance.
Certified Aluminum Lower Window & Architectural Fenestration Systems
Each system is engineered using architectural-grade 6063-T5/T6 aluminum alloy extrusions, advanced thermal barrier polyamide strips (PA66-GF25), multi-point European perimeter locking gear, and high-performance insulated glass units (IGU).
Fuson Aluminum Casement Lower Window with Integrated Fly Screen & Grill
- Profile: 6063-T5 Heavy-Duty Extrusion
- Glazing: Double-Pane Toughened Safety Glass
- Feature: Stainless 304 High-Tensile Mesh
Modern Pivot Minimalist Anti-Theft Aluminum System for Apartments & Villas
- Pivot Core: German Bearing Up to 500kg Load
- Thermal Integrity: Perimeter Multi-EPDM Seals
- Security: Multi-Point Automatic Deadbolts
CE Custom Triple Glazed Thermal Break Aluminum Office & French Casement Window
- U-Factor: Down to 0.18 BTU/hr·ft²·°F (Low-E)
- Acoustic Rating: Rw 42 dB Sound Attenuation
- Standard: CE EN 14351-1 Certified

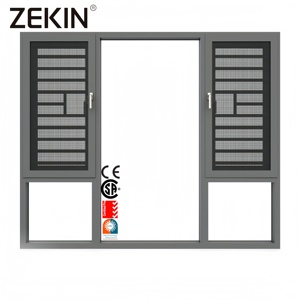

ZEKIN Heavy Aluminum Alloy Casement with Multi-Locking Burglar-Proof Screen
- Mechanism: Friction Stay + Multipoint Lock
- Screen: Concealed Magnetic Removable Fit
- Infiltration: Class 4 Air Tightness Rating
Heavy Commercial Bi-Fold Folding Glass Patio & Lower Storefront Fenestration
- Roller Track: Heavy Stainless Steel Base Rail
- Threshold: Low Barrier ADA-Compliant Sub-Sill
- Tint Options: Solar Reflective / Low-Iron
Arch AS 2047 Standard Double Glazed Vertical Sliding Lower Sash Window
- Compliance: AS 2047 / AS 1288 Windload N6
- Counterbalance: Heavy-Duty Spiral Balancers
- Sash Drainage: Dual Chamber Weep Holes
High-Efficiency Low-E Hung Window Frame Single/Double Sash for Retrofits
- Glass Coating: Triple Silver Solar Low-E
- Architectural: Internal Colonial Muntin Bars
- Water Tightness: 600 Pa Hydrostatic Resistance

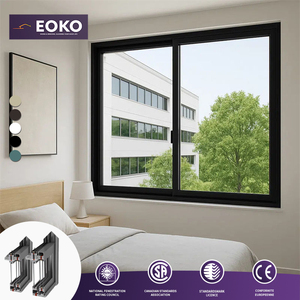

EOKO Thermal Break Double Glazed Sliding Window for Residential Projects
- Interlock: Slim Stile Structural Reinforcement
- Rollers: CNC Machined Nylon Whisper Gliders
- Thermal Break: Polyamide Technoform Strips
Why Top Façade Engineers & General Contractors Specify DERCHI
Operated under Guangdong Dejiyoupin Doors and Windows Co., Ltd., DERCHI stands as one of China’s Top 10 fenestration enterprises. Spanning a 180,000㎡ precision manufacturing complex in Foshan, Guangdong, we merge cutting-edge German extrusion machining with rigorous global compliance testing.
180,000㎡ Integrated Plant
Fully automated CNC extrusion lines, automatic glass tempering, insulating automated lines, and dual-component silicone sealing robots ensure sub-millimeter tolerances on all custom lower window and door schedules.
Global Multi-Standard Compliance
Tested and independently certified to Australian Standard AS 2047 (cyclonic N6 wind pressure), European CE (EN 14351-1), ISO 9001 quality management, and UL fire-rated standards for international building envelope safety.
Free Structural & CAD Engineering
Our 600+ staff includes dedicated fenestration structural engineers who evaluate project wind-load values, thermal bridging, and water evacuation dynamics, providing comprehensive CAD shop drawings and BIM models without upfront cost.
25+ Years Global Track Record
From prominent installations showcased at WORLDBEX 2025 in the Philippines to luxury resort projects in Hawaii, Australia, Southeast Asia, and the Middle East, our fenestration engineering is proven against salt spray, monsoons, and extreme thermal cycling.
Eliminating Lower Window Failure Modes: Water Ingress & Structural Deflection
Because lower windows sit in the high-hydrostatic-pressure zone of building envelopes, standard off-the-shelf residential profiles frequently suffer from water seepage, silicone degradation, and air leakage under heavy wind gusts.
- Multi-Stage Pressure-Equalized Drainage: Cascading internal weep baffles prevent water backup even under 600 Pa sustained cyclonic driving rains.
- Continuous Polyamide PA66-GF25 Thermal Breaks: Fiberglass-reinforced insulation strips decouple outer aluminum temperatures, completely stopping interior frame condensation.
- AAMA 2605 Fluoropolymer Powder Coating: Resists extreme ultraviolet radiation, sea salt aerosol pitting, and humidity without peeling or fading for up to 30 years.
Next-Generation Engineering Trends in Aluminum Lower Fenestration
Modern façade design is evolving rapidly. As building energy codes transition toward Net-Zero and Passive House thresholds, aluminum lower windows are undergoing revolutionary mechanical and material improvements.
Aero-Gel Infused Polyamide & Vacuum Glazing Integration
The standard 14.8mm thermal strip is being superseded by multi-cavity 24mm to 34mm PA66-GF25 extrusions backfilled with aerogel or polyurethane foams. In tandem with hybrid Vacuum Insulated Glass (VIG) technology, whole-window U-factors are dropping below 0.8 W/m²K, matching solid wall insulation while maintaining razor-thin sightlines that maximize daylight penetration.
Concealed Mechatronic Actuators & Smart Building Integration
Manual crank handles on hopper and awning lower windows are being phased out in institutional and luxury spaces in favor of 24V DC brushless micro-actuators concealed inside the frame profile. These integrate with BMS (Building Management Systems) via KNX or BACnet, executing automated night-purge cooling schedules and closing automatically upon sensing rain droplets or exterior PM2.5 surges.
Asymmetric Acoustic Laminates & Perimeter Compression Gasketing
Urban density requires unprecedented sound insulation. Next-gen lower windows utilize asymmetrical glass configurations (e.g., 6mm tempered exterior + 16A argon + 4mm + 0.76mm acoustic PVB + 4mm laminated interior). Paired with cellular vulcanized EPDM compression seals, low-frequency traffic noise attenuation reaches an impressive STC 45 / Rw 43 dB threshold.
| Performance Criterion | Legacy Low-Tier Extrusions | DERCHI Commercial Standard | Next-Gen Passive House Specification |
|---|---|---|---|
| Alloy Metallurgy | Recycled / Secondary 6063 Aluminum | Primary Ingot 6063-T5 / T6 | Ultra-Pure 6060-T66 Structural Extrusion |
| Thermal Transmittance (U-Value) | 2.8 – 3.8 W/(m²·K) (Non-Break / Minimal) | 1.4 – 1.8 W/(m²·K) (PA66-GF25 Thermal Break) | ≤ 0.80 W/(m²·K) (Multi-Cavity Aerogel Foam) |
| Design Wind Pressure Resistance | 1500 Pa (Standard Residential) | AS 2047 N6 (≥ 4500 Pa Ultimate) | 5000+ Pa (High-Rise Impact Rated) |
| Acoustic Damping (Sound Reduction) | Rw 26 – 30 dB (Standard Double Glass) | Rw 38 – 42 dB (Acoustic IGU) | Rw ≥ 46 dB (Triple Layer Asymmetric VIG) |
| Corrosion Resistance (Salt Spray) | 500 Hours (Standard Mill/Powder) | 3,000+ Hours (AAMA 2604/2605 Tested) | 5,000+ Hours (PVDF 3-Coat Coastal Marine) |
Procurement Forecast (2025–2030): Navigating ESG, Lead Times & Modular Construction
Procurement directors and commercial developers must balance geopolitical headwinds, freight volatile indexes, and strict corporate ESG carbon accounting. Sourcing directly from premier Chinese extrusion and window manufacturing centers requires a recalibrated supply chain methodology.
Embodied Carbon & Green Aluminum
European CBAM (Carbon Border Adjustment Mechanism) and US LEED v4.1 certifications prioritize low-carbon smelting. Leading factories utilize hydropower-smelted primary aluminum with certified EPD (Environmental Product Declarations), slashing cradle-to-gate embodied carbon by up to 60%.
Prefabricated Unitized Fenestration
With jobsite labor costs rising across North America, Australasia, and Europe, developers favor factory-glazed, fully unitized lower window sub-frames equipped with factory-applied flashing membranes and perimeter receptors that snap into precast concrete openings.
Single-Source Consolidation
Multi-vendor procurement creates finger-pointing when interface leaks occur. Modern contractors consolidate lower windows, architectural entry pivot doors, heavy sliding systems, and curtain wall louvers under a single manufacturer to safeguard warranty enforcement.
Full-Container Sea-Crated Protection
Maritime transit causes glass stress cracks and surface scuffing when poorly crated. High-tier suppliers utilize custom fumigated plywood stillages with high-density EPE foam separation, desiccant packs, and moisture-barrier shrink wraps to guarantee defect-free arrival.
Frequently Asked Questions (FAQ) for Commercial Fenestration Buyers
Direct technical answers addressing structural wind load, thermal transmittance, water resistance thresholds, certifications, and international logistics.
